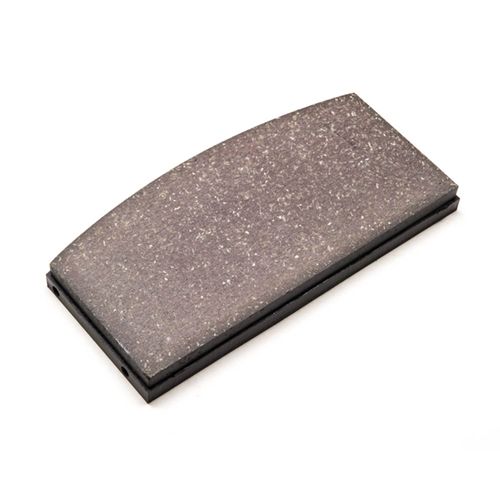

ICP Organic Brake Pad CSB300 Series

Brand: ICP Wind
Code: CA0082

ICP Wind manufactures a comprehensive range of OEM and aftermarket-approved friction brake pads. Manufactured for all types of wind turbine brakes. Trusted by major wind turbine brands throughout the wind market.

CSB300 series is an organic brake pad formulated for Svendborg 300 series dual-spring brakes. The semi-metal, moulded friction has a high and very stable friction coefficient and excellent resistance to fading.

  • Size: 251 x 125 x 24 mm
  • Friction material: FTL098, organic
  • Replaces: Svendborg 490-2947-001, Hagglunds 3781061
In stock

For further information, please contact us at:

CSB300 Series - Organic Brake Pad Replaces Svendborg 490-2947-001

FTL098 is a rigid, semi-metal, moulded friction material. It is composed of resins and rubber as a link system with friction modifier agents, mineral fibres and fine copper shavings to enhance its strength. They help to establish the friction value conducting heat from the operating surface. It has a high and very stable friction coefficient and excellent resistance to fading.

Product Specific Information

Please enter any product specific information to enable our engineers to specify the correct product or product for you.

Svendborg 490-2947-001
Hagglunds 3781061
Material Organic
OEM Replacement Svendborg
Brake Type BSFI300
Friction Coefficient 0.65
Size 251 x 125 x 24 mm
